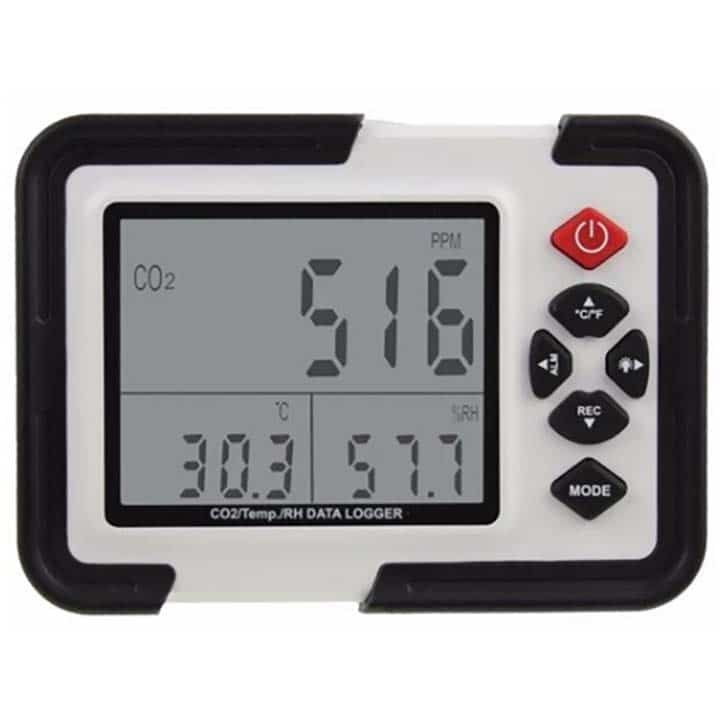

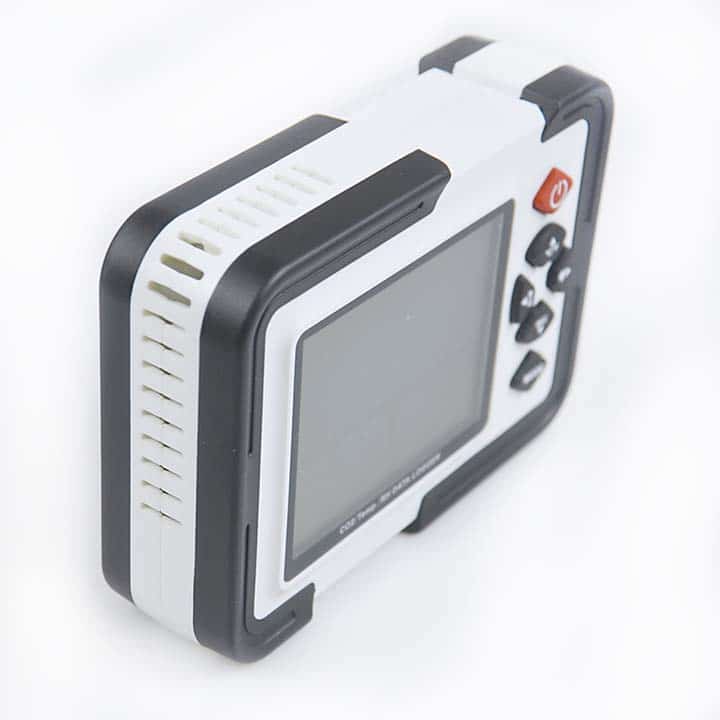

CDPH2000 professional CO2 detector with CE certified with memory data LOGGER

129,00 106,61 without vat

The CDPH2000 professional CO2 detector with CE certified with memory data LOGGER  is a multifunction device used to detect the concentration of carbon dioxide, temperature and humidity in the environment.

It has multiple applications. With it, you can measure the environmental quality in hotels, department stores, offices, meeting rooms, libraries, train or bus stations, airports, pharmacies, living rooms, labs, schools, reading rooms, cinemas, hospitals, greenhouses, etc.

In addition, you will be able to collect data and carry out studies.

The Harvard guide (or the one just published by the CSIC) recommends, for COVID-19 prevention, not to exceed 700 ppm in a room.

* Important: Our CO2 monitors are equipped with Swiss-made NDIR sensors to measure CO2 concentration NDIR manufactured in Switzerland (Non-Dispersive Infrared) WAVE GUIDE TECHNOLOGY WITH ABC (Automatic Background Calibration), which are not affected by variations in temperature and humidity and allow a durability of more than 15 years.

CO2 monitors with CE certification and RoHs approval

In stock

Description

The CDPH2000 professional CO2 detector with CE certified with memory data LOGGER  is a multifunction device used to detect the concentration of carbon dioxide, temperature and humidity in the environment.

It has multiple applications. With it, you can measure the environmental quality in hotels, department stores, offices, meeting rooms, libraries, train or bus stations, airports, pharmacies, living rooms, labs, schools, reading rooms, cinemas, hospitals, greenhouses, etc.

In addition, you will be able to collect data and carry out studies.

The Harvard guide (or the one just published by the CSIC) recommends, for COVID-19 prevention, not to exceed 700 ppm in a room.

* Important: Our CO2 monitors are equipped with Swiss-made NDIR sensors to measure CO2 concentration NDIR manufactured in Switzerland (Non-Dispersive Infrared) WAVE GUIDE TECHNOLOGY WITH ABC (Automatic Background Calibration), which are not affected by variations in temperature and humidity and allow a durability of more than 15 years.

CO2 monitors with CE certification and RoHs approval

In addition, you will be able to collect data and carry out studies.

What is it for

If a person infected with COVID, or flu, spends hours in a closed room talking, coughing, or even breathing the environment will be filled with infectious aerosols.

Purificador de aire

The best solution is to ventilate the room!

Do windows need to remain open all the time? The more open, the better, but this is not a realistic option because windows cannot remain open all day in winter. So how do we know if we’re carrying out the correct ventilation?

One way to evaluate if you are ventilating correctly is by using CO2 meters.

People emit CO2 when breathing, so the cumulative amount of this gas indicates the level of ventilation in a room.

The Harvard guide (or the one just published by the CSIC) recommends, for COVID-19 prevention, to not exceed 700 ppm in a room.

The conclusion of the study is that it is essential to have a CO2 analyzer that ensures adequate ventilation.

Recent studies show that, for example, in a school classroom that has not been ventilated correctly the level can exceed 2,000 – 4,000 ppm.

https://www.ciencia.gob.es/stfls/MICINN/Ministerio/FICHEROS/guia_para_ventilacion_en_aulas_csic.pdf

This scenario can also occur in a bar, restaurant, office, waiting room or in your own home.

Product features

    • The LCD displays and simultaneously records CO2 levels, temperature, relative humidity, calendar (A/M/D) and time (clock)
    • 12700 data log memories
    • CARBON DIOXIDE LEVEL WARNING!
    • Stable NDIR sensor for CO2 concentration
    • NDIR (Non-Dispersive Infrared) Wave Guidance Technology with ABC (Automatic Background Calibration)
    • High and low threshold settings
    • Backlight function
    • Recover MAX and MIN reading
    • Long-term deviation compensation

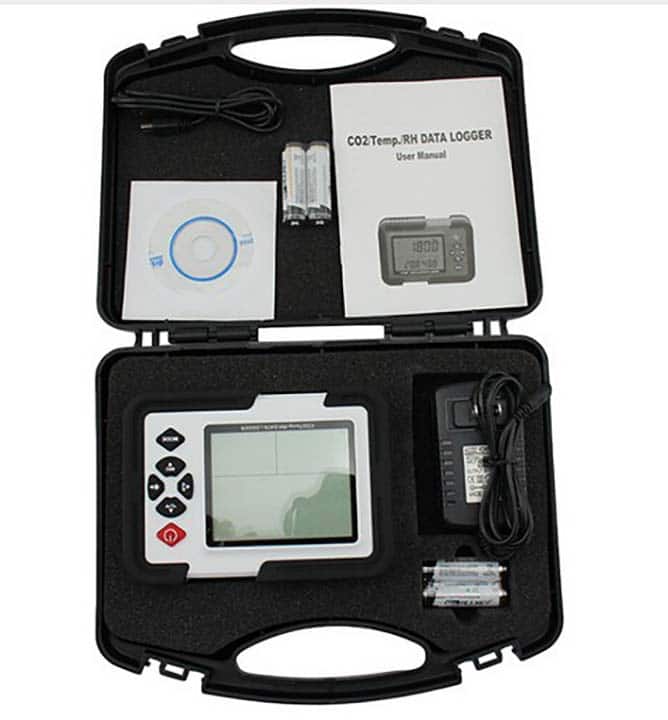

    • Comes with EUR power adapter
    • Works connected to your adapter or with 4 AAA type batteries

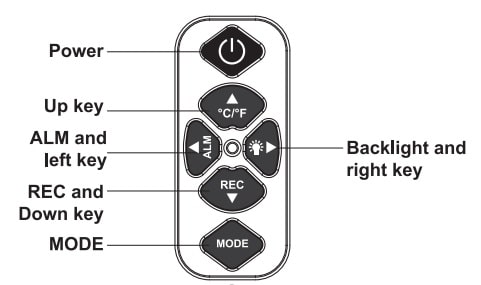

Panel and key description

Detector - Medidor de CO2 profesional CDPH2000 con data loger Power: on/off button.
° C / ° F and Up Key:

  1. 1. You can set the data to higher values.
  2. Change unit: Celsius and Fahrenheit.
ALM and left key:

  1. When you are on the main configuration interface, turn the CO2 concentration alarm on/off.
  2. With this key you can choose between date, time and CO2 concentration alarm.
Backlight and Right key:

  1. In the main settings interface, turn the backlight on/off.
  2. 2. If there are alarming changes in the date, time, and CO2 concentration pattern, press this key to confirm.
REC and Down key:

  1. You can set the data to lower values.
  2. In automatic mode, the button opens and starts measuring.
Mode: Switch to a different mode.

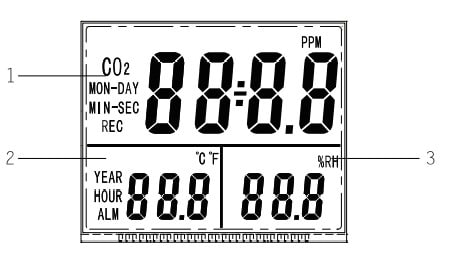

Detector - Medidor de CO2 profesional CDPH2000 con data loger 1) CO2 display area:

PPM: View CO2 concentration

CO2: View CO2

MON: Counting unit for “Month”

DAY: Counting unit for Day”

MIN: Counting unit for “minute”

SEG: Counting unit for “second”

REC: record

2) Temperature display area

°C/°F: Celsius, Fahrenheit

YEAR: Counting unit for “year”

HOUR: Counting unit for “hour”

3) Humidity viewing area:

%RH: humidity display

Technical parameters

  • 5″ (8.9 cm) LCD display with retro lighting
  • Logging mode: Start/Stop, Immediate, Programmed, Real-time and Roll-over
  • Carbon dioxide (CO2)
  • Range: 0-9999 (off-scale)
  • Accuracy: ± 5Oppm ± 5% reading (0-2000)
  • Response time: 10 sec
  • Temperature Range: -10.0 – 70.0 ° C (14 – 158 ° F)
  • Resolution: 0.1 ° C / ° F
  • Accuracy: ± 0.6 ° C / ± 0.9 ° F (0-50 ° C / 32-122 ° F), others ± 1.2 ° C
  • Humidity Range: 0,1 – 99,9%
  • Resolution: 0.1%
  • Accuracy: ± 3% (10-90%)
  • Log memories: 12700
  • Condition of use: 0 – 50oC,0 – 95% relative humidity
  • Storage condition: -20 – 60oC,0 – 99% relative humidity
  • Sensor life: 15 years under normal conditions.
  • Power Supply: 9V AC Adapter or 4 AA type Batteries
