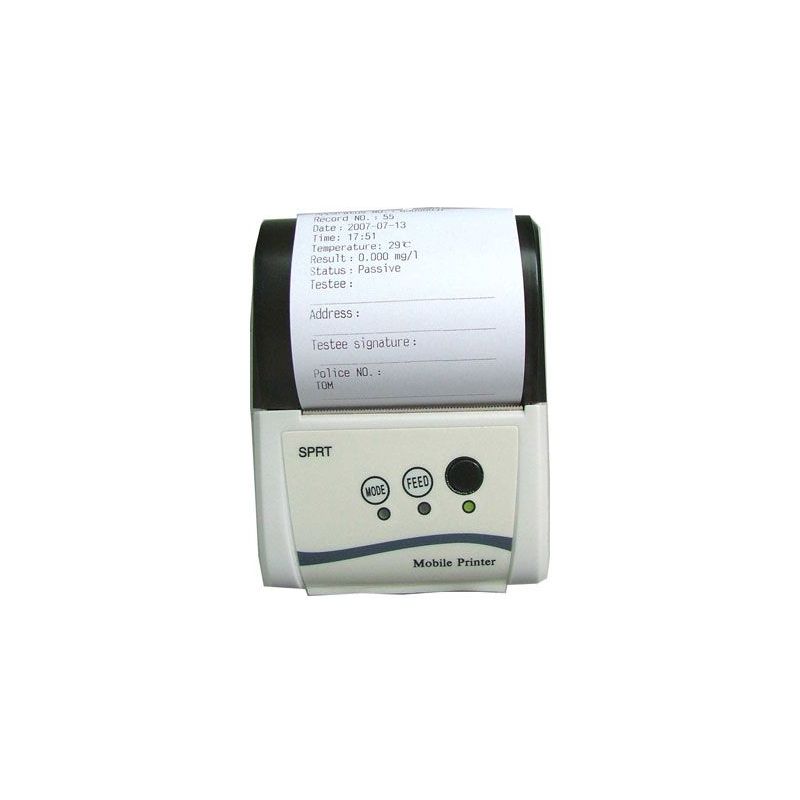

Bluetooth Printer for the Breath Tester CDP 8100/8800

131,40 131,40 without vat

The Bluetooth printer for the Breath Tester CDP 8100 / 8800 allows printing receipts remotely at a distance of up to 50 meters without cables. A single printer has the capacity to give service to more than 5 breath testers simultaneously, allowing to optimize the effectiveness and productivity of resources in a control process, especially on the road.


SKU: ALC-ImpWir8100

Category:

General characteristics of the printer:

  • Print method: Direct, thermal paper.
  • Print paper width: 58 mm.
  • Valid print width: 48 mm.
  • Print density: 8 points/mm. (203 dpi), 384 points / line.
  • Print speed: 62 mm/second (approximately).
  • Print paper thickness: 0.06 – 0.08 um.
  • Print font: GB Level I, Chinese Character Library, ASCII Characters, EAN13, EAN8 Barcodes, Graph.
  • Useful life of the printer head: 50 km.
  • Operation temperature: 5ºC – 45ºC
    • Relative humidity: 20% – 85%
  • Storage temperature: -20ºC – 70ºC
    • Relative humidity: 5% – 95%

Physical Characteristics of the printer:

  • Size: 77.4 x 103 x 36 mm.
  • Weight: 196g (not including the paper roll).
  • Paper width: 57.5 – 0.5 mm
  • Interface: TIII-BT: RS-232 + Bluetooth, TIII: RS-232
  • Paper roll diameter: 40 mm (approximately).
  • Interface: Wireless (only for the TIIIBT model), IrCOMM (only for the TII Ir model), RS232 (9600 bps – 115200bps), Raw-Ir (Ir 1200 bps – 115200 bps) only for the TII Ra model.

Other printer specifications:

  • Paper loading: Clamshell Mode.
  • Paper cutting mode: manual.
  • Location black mark: Available.
  • Detection of paper roll end: When there is no more paper, the mode indicator flashes.
  • Print commands: ESC/POS compatible command.
  • Power: rechargeable battery DC7.4V,1.5A Li-ion battery.
  • Worn battery indicator: When the battery is used up, the On Indicator turns red and an acoustic signal is heard.
  • Automatic inactive mode: If the printer doesn’t receive a print signal for some time, it will automatically go to Inactive Mode. It will restart automatically when it receives a print signal.
  • Battery recharge time: 1 – 3 hours.
  • Battery use time: once the battery is charged, with a density below 25%, 90 meters to print and 12 hours in standby. Use this parameter as a reference, since the time may vary according to use.

Information received in the printed receipt:

  • Reference of the device.
  • Report number.
  • Date.
  • Time.
  • Environmental temperature.
  • Result.
  • Device status or mode.
  • Person examined.
  • Vehicle’s license plate number.
  • Postal address.
  • Signature of person tested.
  • Police reference number.

This information may be customized for large projects.
