Temperature Measurement Panel, Facial and Mask Recognition CDPR100

1.350,00€ 1.115,70,88€ without vat

CDPR100 Access Control (Al Face Recognition and Body Temperature Measurement) is a complete epidemic prevention solution that integrates AI face recognition, body temperature measurement, mask recognition, and access control. On-site efficient temperature detection, person identification and human movement management, effectively reducing pressure on epidemic prevention and control, as well as human resources costs.

If interested please contact CDP

Delivery between 5 and 7 days

Description

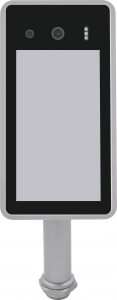

Temperature Measurement Panel, Facial and Mask Recognition CDPr100 (Configurable Access Control).

CDPR100 Access Control (Al Face Recognition and Body Temperature Measurement) is a complete epidemic prevention solution that integrates AI face recognition, body temperature measurement, mask recognition, and access control. On-site efficient temperature detection, person identification and human movement management, effectively reducing pressure on epidemic prevention and control, as well as human resources costs.

BODY TEMPERATURE MONITORING

Set the body temperature threshold, through the associated access control, do not open the door and press the alarm when someone exceeds the threshold.

SMART RECOGNITION (If desired, configurable function)

Compared to the facial photo database, recognize visitors who are on the Whitelist, blacklist, or a stranger or guest.

VOICE WARNINGS

The device itself has a voice transmission capacity and a voice reminder according to a predetermined result.

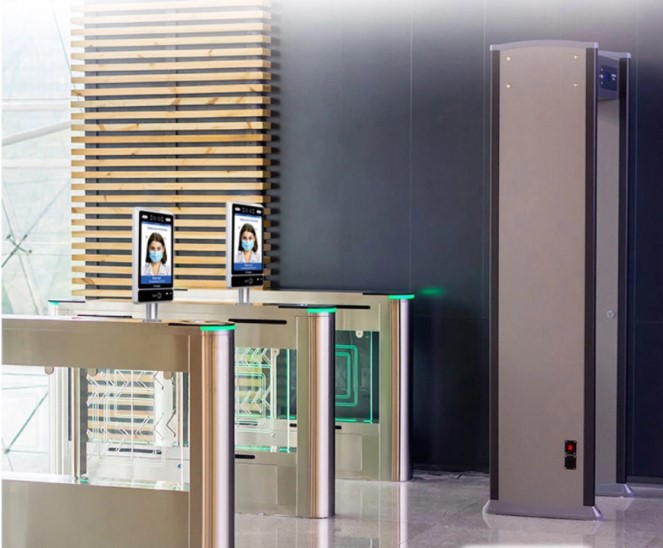

You can connect external equipment for example to operate on a lathe, electric lock, voice transmission, display equipment and alarm equipment.

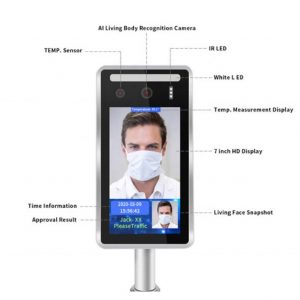

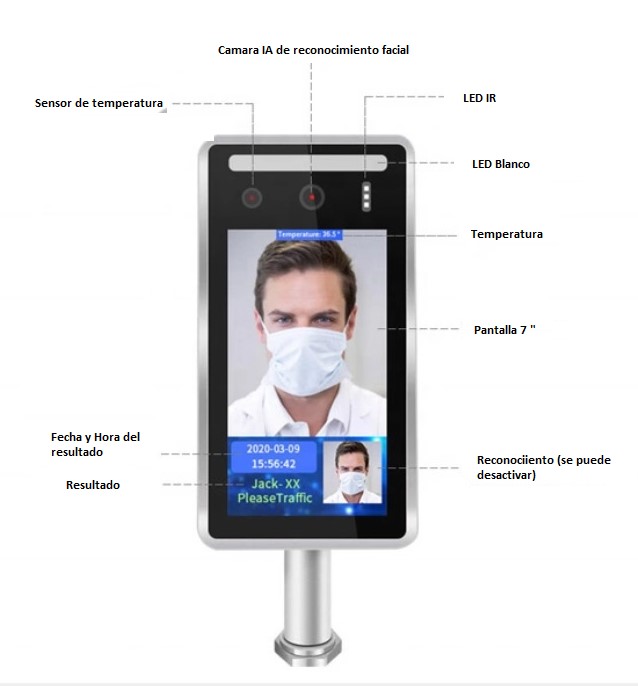

High-precision thermal with infrared moduleAutomatic recognition of mask useVisual and voice alarm for normal body temperature and mask use.Binocular recognition anti-counter felt function, anti-cheat photos, videos, etc.
Precision facial recognition > 99%. Recognition speed <200 msLow-light, infrared and RGB recognition, worry-free recognitionFace, temperature detection, optional IC card, ID cardWorking environment
– 10 ° C-60 ° C

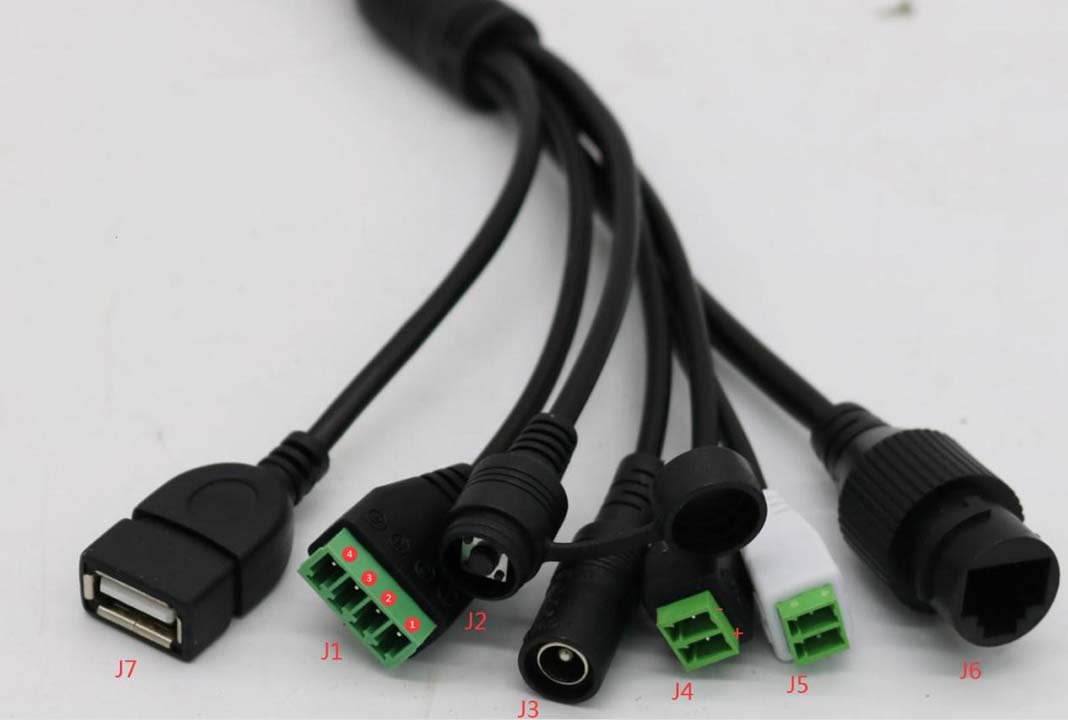

ConnectionsPanel de medición de temperatura, reconocimiento facial y de mascarilla





J1 Access control

(exit)

1 and 2 waiting for open contact, if the identification is correct it closes.
3 and 4 waiting for closed contact, if identification is correct it opens.
Restart key J2
Power connectorJ3DC 12V
Alarm output J4Output alarm GND + ALMO 1, without action output 3.3V,with action output 0V
Connector J5 Wiegand-WGNI0 + WGNI1 (input)
J6 RJ45100 Mb
J7 USB5V DM DP GND

Technical characteristics

ModelCDPR100
ProductMain board modelRS-H658AI-A0-A
Sensor modelRS-H658S-A0-B
SystemChipHi3516CV500
Operating systemIncorporated operating system LINUX
VideoImage sensor1 / 2.8 IMX327
CompressionH.265
SystemPAL 50 HZ / NTSC 60 HZ
Resolution1920 * 1080
Size LCDSize LCD 7” screen
Video Bit stream128 kbps-12288 kbps (default variable code rate)
SNRSNR ≥69dB
Minimum lightDay mode 1Lux, night mode 0.01Lux
Mode D / NAutomatic (passive mode) / day mode / night mode / automatic mode / timing
(AWB) / (BLC) / (AGC) / WDRAUTO
(AES) AUTO / 1/50(1/60)-1 / 100,000seg
Video output Easytool / EasyVMS / APP / 7” screen
 Motion sensorSupported
Screen captureSupported
FunctionBody temperature testSupport (0.3-1.2M distance,error ± 0.3℃)

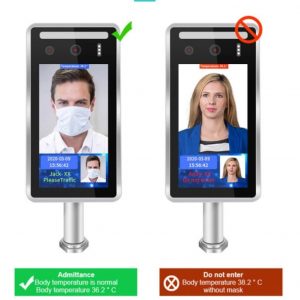

Mask recognitionSupported
Access control assistanceSupported
AudioCoding standardsG.711U
Audio inputMIC passive / speaker
Audio outputExternal speaker 8Ω / MAX 1.5W
RecordingRecording modeManual recording, alarm recording, timed recording
Recording storageTF Card (pcb completely functional) / PC / NVR
AlarmsAlarm input/outputSupports weigen protocol
Alarm triggerMotion detection alarm, speaker alarm, alarm recording, image capture, mailing
NetworkWi-Fi module / protocol M8188 (eternal antenna 2.4G) / supports 802.11 b / g / n (pcb completely functional)
Network protocolHTTP, TCP / IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPOE, DDNS, FTP, IP search (admits IP camera P6S, DVR, NVS and etc.)
OtherTF card storageMaximum support 128 GB (in common use FAT32 format) pcb of complete function
Work voltageDC-12V standard (wide voltage 10-16V)
Work current160mA ±10mA
Work environment-20℃ — +65℃

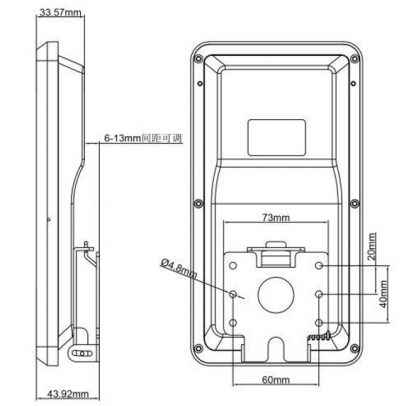

SizePrinted circuit board85mm * 60mm
Sensor Pcb66mm * 27mm
