Portable professional camera to measure temperature CDPR200

1.250,00€ 1.033,06€ without vat

The CDPR200 portable thermal imaging camera is a portable thermographic system, to help complement PPE and transmit security.

Its main advantages are

  • Set very accurate temperature measurement points (+0.50º).
  • Identify risk profiles while maintaining a safe distance.
  • Quick and easy execution, thanks to its easy and fast use (It’s portable).
  • Safeguards public health in case of mass contact.

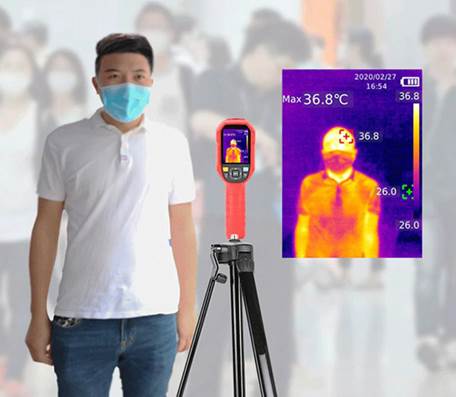

  • It can be mounted on a tripod.

If interested please contact CDP

Delivery between 5 and 7 days

Description

Portable professional camera to measure temperature CDPR200

The CDPR200 portable thermal imaging camera is a portable thermographic system, to help complement PPE and transmit security.

Its main advantages are

  • Set very accurate temperature measurement points (+0.50º).
  • Identify risk profiles while maintaining a safe distance.
  • Quick and easy execution, thanks to its easy and fast use (It’s portable).
  • Safeguards public health in case of mass contact.
  • It can be mounted on a tripod.

Main features

  • High temperature limit alarm: The customized high temperature limit can be set to 37.3 ℃ for example. For a temperature measurement of  ≥37.3 ℃, an indicator light and the display will indicate a high temperature alarm, which can effectively and quickly identify people with atypical temperatures

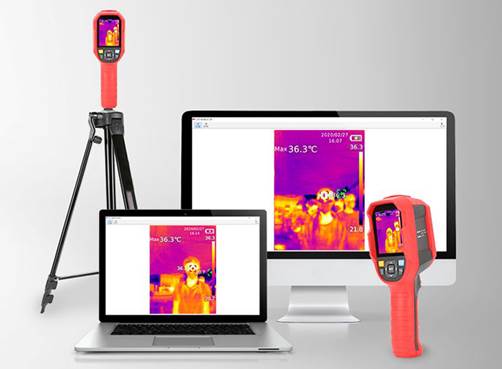

  • Real-time image transmission: Set USB mode to camera, connect USB cable to computer for real-time images.
  • Five sampling and display modes: Provides high contrast detail processing and analysis, images can be saved at the same time as sampled.
  • Personalized temperature unit: ºC / º F

Equipment keys

Cámara para medición de temperatura portátil CDP-R200

Features of the CDPR200 thermo-graphic camera

  • TFT 2.8” screen
  • Infrared resolution: 160 × 120
  • Frame rate: 9Hz
  • Temperature measurement range: 30 ℃ ~ 45 ℃
  • Accuracy: ± 0.5 ℃ (1m)
  • Photograph and SD card storage function.
  • PC software analysis
  • Point temperature measurement
  • Real-time image transmission
  • Visible light (640 × 480)
  • USB Type-C interface for charging lithium batteries
  • Tripod mounting hole 1/4”



Specifications

ModelCDPR200

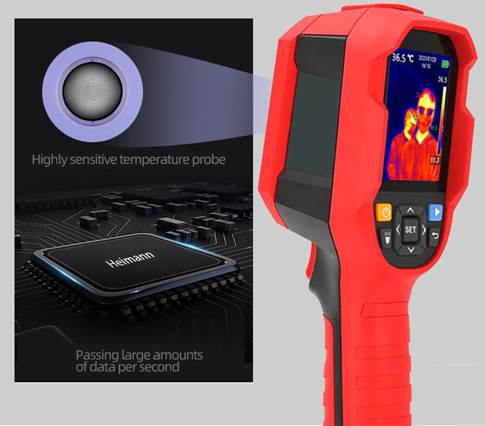

SensorNon-cooled focal plane
Temperature range30˚C ~ 45˚C
Resolution0.1˚C
Exactness± 0.5˚C @ 1m
Minimum measurement distance15cm
Temperature measurement response time≤500ms (95% reading)
Thermal image pixels19200 (160 × 120)
Pixel size12μm

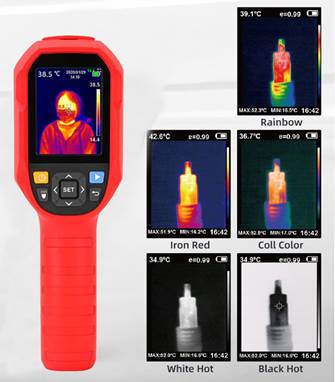

PalettesRed iron, rainbow, white, black, red, lava, high contrast rainbow
Infrared spectroscopy bandwidth8 ~ 14μm
Field of view56 ° (H) × 42 ° (V)
Instantaneous field of view6mrad
Thermal imaging sensitivity<50mk
Frames per second<9Hz
Viewing temperature(default)
Image formatBMP
ButtonsPower button, camera button, return button, navigation buttons,
SET button, LED lighting button
Image modeThermal imaging, digital camera (visible light), protection
Temperature measuring pointIn addition to the center point, 3 temperature measurement points can be added
Visible light
Resolution of visible light640 × 480
Screen resolution320 × 240
Mixed adjustment0% (Total visible light), 25%, 50%, 75%, 100% (total thermal images)
Pc software analysis (PC)
Real-time image transmission√ (PC software image projection)
Data communicationUSB type C
Auto power offSelectable (5 minutes, 10 minutes, 30 minutes), 30-minute auto power off (default)
Service time≧6 hours
Charging time≦5 hours
Charging voltaje / current5V / 2A
Image storageSD micro card

General characteristics

PowerA single 3.7V / 5000mAh 26650 lithium-ion battery
MonitorLCD TFT 2.8 “
Product colorRed and grey
Product size236 mm x 75.5 mm x 86 mm
Standard accessoriesManual, C type USB cable USB, TF card of 16 GB
Gross weight of standard box2.2kg
