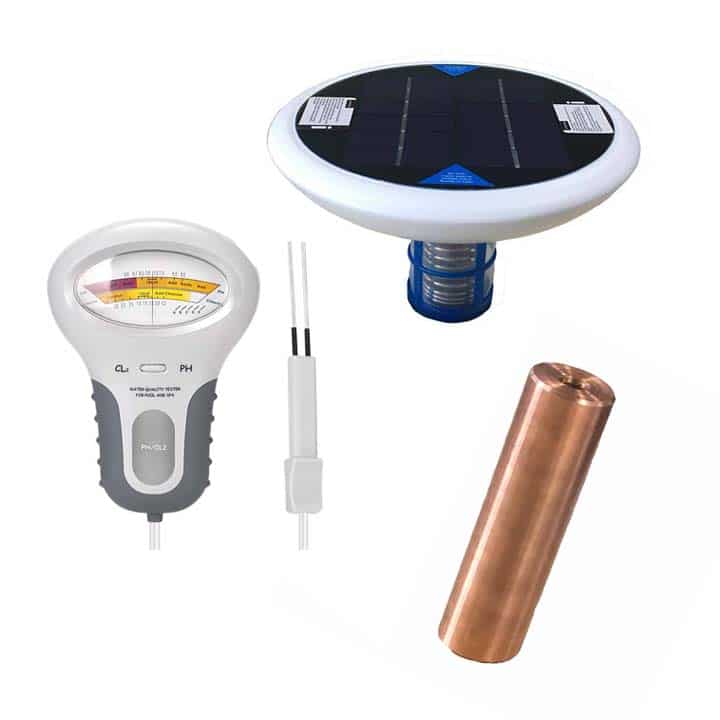

All in one for swimming pools. Chlorine and PH meter, Solar pool ionizer and Copper and silver anode
1.Chlorine and PH meter for swimming pools and spas. 2 in 1. CDPPHCL
This electronic chlorine and PH meter is a fundamental tool for the maintaining of swimming pools and any other water tank intended for human use. The meter allows you to accurately dose the concentration of Chlorine in pools and adjust the PH to the optimal levels for proper water maintenance. This instrument is an ideal complement to optimize the use of the CDP Solar Ionizer. It will help you monitor the desired levels of Chlorine and PH.
The electronic chlorine and PH meter is a very accurate tool to keep your pool or spa in a safe PH range. Avoid the use of chemicals or reagent strips, which are difficult to use and expensive, and save time and money.
Quickly check the PH, organic pollution and harmful substances in the water. The meter has a large easy-to-read display which shows the results of the test quickly and accurately.
It’s intuitive and portable. You can quickly check if the Chlorine and PH are in the correct range. It does not contaminate or need consumables as it is self-cleansing.
- Material: plastic
- Power supply: 1 x batteries AA of 1,5 V (not included)
- Main Unit: 190mm * 20mm
- Handle probe: 150mm
- Probe (only): 48mm
- Cable (only): 300mm
- Item weight: 161g / 5.7 ounces
- Package size: 240*145*30mm / 9,5*5,7 * 1.2in
- Package weight: 221g / 7.8 ounces
What the package includes
- 1 Cl2 and PH Meter with probe
- 1 Instruction manual
- 1 Sandpaper to clean probes

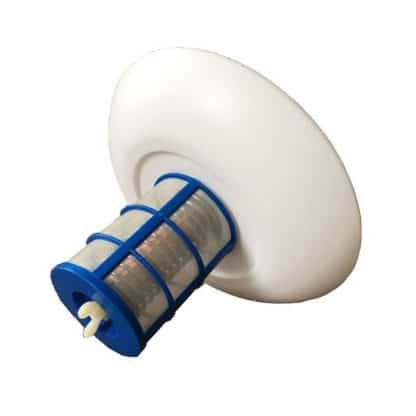

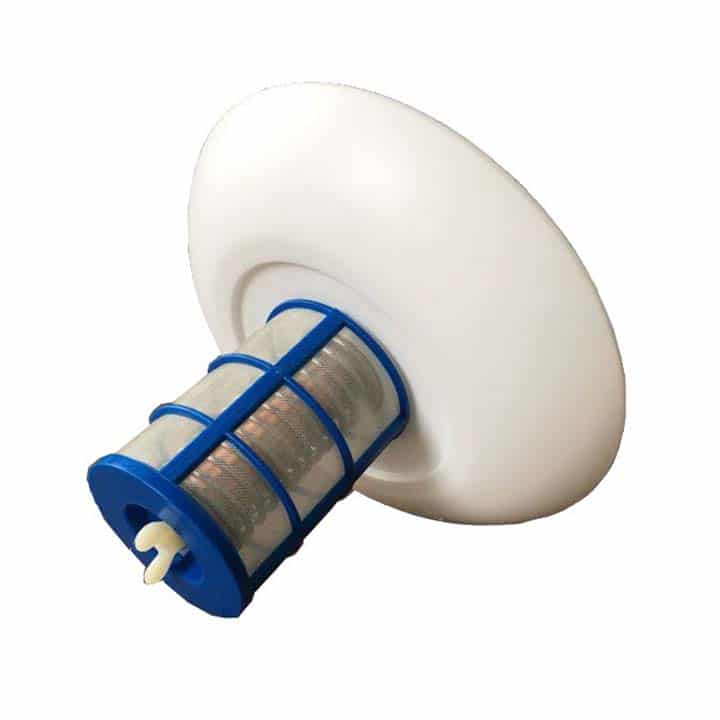

2. Solar pool ionizer using silver and copper anode. CDPP02P
Our solar water purifier combines solar power generation through a process called ionization.
This process was first developed by NASA for use aboard the Apollo spacecraft, in order to purify the available water. By introducing atomic quantities of specific minerals into water, microorganisms such as algae and bacteria cannot survive. While these ions, or atoms, are completely safe and non-toxic to you, microscopic life forms cannot develop in these cases. Unlike chlorine, which loses power after only a few hours, mineral ions produced by the solar ionizer remain effective for weeks demonstrating its purifying effect in a few days.
How the Solar Pool Ionizer works
Mientras el purificador solar está flotando en el agua, el panel solar convierte la luz solar en electricidad. Esta corriente eléctrica de bajo voltaje, que es completamente inocua, da energía a un electrodo de aleación mineral de Plata y Cobre por debajo de la línea de flotación. Esto provoca la liberación de iones minerales en el agua circundante que se expanden fácilmente en toda la piscina. Una vez el agua ha alcanzado un nivel óptimo de ionización evitará eficientemente el crecimiento de microorganismos sin la necesidad de emplear agentes químicos. Algunos contaminantes en su piscina, como el polvo, la loción bronceadora, los fluidos corporales, etc., no se ven afectados por los minerales. Una acumulación de estas sustancias tiende a nublar el agua y, por lo tanto, requiere una cantidad mínima de cloro para disolverlas y mantener el agua cristalina. Podrá reducir el nivel de cloro hasta en un 90% con respecto a la cantidad habitual utilizada aportándole además un importante ahorro económico en costes de mantenimiento.
- You can reduce chlorine consumption by 80-95% and in algicides by 100%.
- Elimination of aggressive chemical agents in skin, eyes, hair, etc.
- Eliminates harmful minerals such as calcium and iron by anode capture.
- It will reduce electricity consumption by filtration hours from 40 to 70%, especially regarding saline strainers that require a long generation process.
- The PH level will remain stable at optimal levels without variations like those produced by saline chlorinators or chemical pills.
- Eliminating calcium and iron in water.
- If you use a saline chlorinator you will not have to handle heavy sacks of salt that also deteriorate 100% of the metal components of your pool machinery.
Safe, effective and economical
The CDP SOLAR POOL IONIZER is completely safe and non-toxic, there is no risk of electric shock. Swimming with the unit in the water is perfectly safe, and the unit will remove irritations, odors and bleaching associated with chlorine. Water ionized with the CDP solar water purifier is subject to the established standards for drinking water by the EPA (Environmental Protection Agency), thus avoiding highly toxic chemical levels. In addition, water remains clean and stable for long periods of time because the minerals, unlike other chemicals, do not evaporate.
Unlike chlorine, hot summer conditions do not degrade Ion. On the contrary, the hotter it is, the better it works. Our CDP POOL IONIZER is extremely economical in the way it operates and works. The only part that requires replacement is the mineral electrode, which will last approximately 1 to 2 years and its replacement is very simple and cost effective.
The solar ionizer will allow you to reduce chlorine consumption by up to 90%. You’ll also enjoy swimming in natural chemical-free water.
The CDP-Solar water purifier is the only purifier that, in addition to generating beneficial mineral ions, collects undesirable minerals such as calcium and iron. This has the effect of softening the water making it healthier. The mineral electrode is designed to erode slowly, and in the process will form an accumulation of inlays that will require occasional cleaning (every 15 days on average). Each device has this size to cover up to 150m3 of water (32,000 Gallons). View test report data:
- Step 1. Make sure the pool conditions are optimal
- Step 2. Introduce the solar pool ionizer
- Step 3. Make sure the solar ionizer is floating in the pool and is exposed at least 4 hours to direct sunlight
- Step 4. After 12 hours, activate the pool filtration system. After 24 hours, check if everything works according to specifications
- Steps 5-6. Remove every 15 days and clean the electrode with the included brush. Check the copper level weekly. If the 0.9 ppm level is exceeded, remove it from the pool and put it back in the pool when it again reaches a value of less than 0.4 ppm.
When the pool has been used, it is necessary to maintain the ionizer in the water permanently during both day and night. You should and monitor the copper levels in the water weekly with the tests provided.

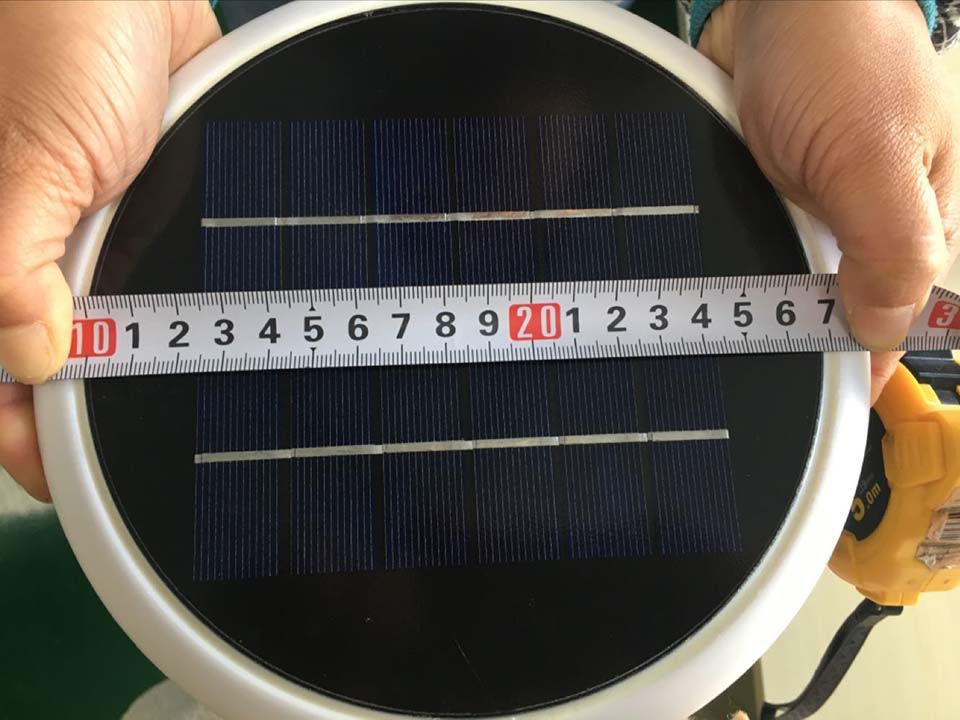

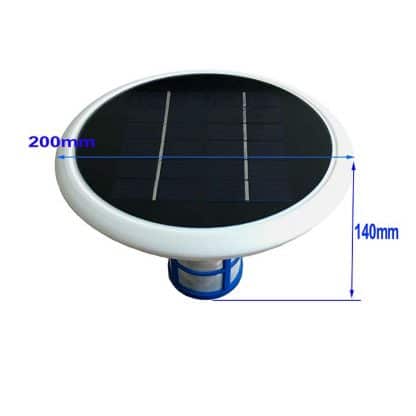

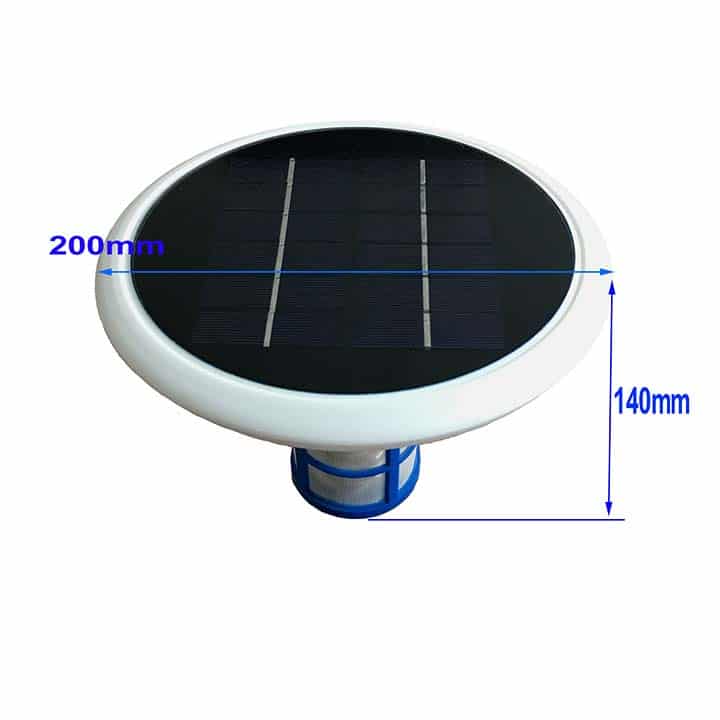

- Type of monocrystalline solar panel coated with tempered glass with diameter of 200mm
- Panel power: 2.00 Watts
- Electrode: Silver and copper alloy anode weighing 0.24kg
- Premium stainless steel coil spring
- External PE case with UV resistance
- Coil material: stainless steel permanent fastening
- Capacity: 150 m3 of water (32,000 gallons) under optimal solar conditions of at least 4-6 hours per day
- Optimal operating range/ copper density: 0.5 – 0.9 PPM
- The anode can last from 2 to 4 summer seasons or a full year under normal conditions of use
- Warranty: 2 years against manufacturing defects
- 1 Base with solar panel
- 1 Silver and copper electrode
- 1 Stainless steel metal spring (attached to the equipment)
- 1 Nylon filter basket
- 1 Fastening bolt
- 1 metal fiber brush
- 1 user manual
- 30 copper test strips in packaging
3. Copper and silver anode for solar ionizer CDPP02P
Anode made of high-quality materials containing an alloy of copper and silver. Its approximate weight is 240 gr.
This long-lasting spare part, 1 or 2 seasons depending on the conditions of use, can be easily replaced when the standard anode is exhausted. Replacing it is very simple. Simply remove the worn anode and screw the new one to the equipment.
Pool ionizers and ionization systems, in general, operate under the principle that silver is a bactericide and copper an algicide. Copper and silver electrodes add traces of these elements to the pool, through electrolysis, applying a low and safe voltage.
Based on an article from the World Health Organization (read below), the ionization of silver and copper provides a high level of protection in water, decreasing the need to apply high concentrations of chlorine or other oxidants.
SOURCE: World Health Organization article
ADVANTAGES OFCOPPER AND SILVER IONIZERS
- Silver can kill bacteria, as explained in the WHO In fact, it has been used as a method of water purification for centuries.
- Copper is an algaecide widely used in the pool industry and very effective in controlling the growth of algae in the water. Maintaining copper levels between 0.2 and 0.4 prevents the formation of algae.
The copper and silver in the pool water do not produce a taste or scent that is detectable by people. Ionizers work with very few maintenance requirements, only cleaning and replacing electrodes
The combined use of the ionizer with low chlorine levels (0.5 ppm – 0.8 ppm) is the most efficient and least aggressive method for the disinfecting and maintaining swimming pools. Simply, it requires the periodic monitoring of copper levels, to avoid stains if copper densities above 0.9pp are reached. The ionization of silver and copper is the ideal solution if you want a pool water purification and filtration system with the least amount of chemical disinfectant oxidant.
The use of ionizers with saline chlorinators are also an optimal combination. The salt system provides chlorine, tending to raise the PH of the pool. Silver and copper are very effective at disinfecting at high PH levels, unlike chlorine which loses its effectiveness.
- Reduces the use of chlorine and other disinfectant chemicals from 80% to 95%.
- A single solar ionizer serves pools with a volume of up to 150 m3 or 32,000 gallons.
- 100% powered by solar energy, which provides savings in energy costs. In addition, it is low current and completely safe for users.
- Easy installation and minimal maintenance.
- Copper and silver mineral ions are 100% natural, healthy for our body and the environment.
- Eliminates, by anode capture, harmful minerals such as calcium and iron.
- The pH level will remain stable, at optimal levels and unchanged
